TRANSISTOR_MATCHING_CIRCUIT

Published:2009/6/19 2:11:00 Author:May | From:SeekIC

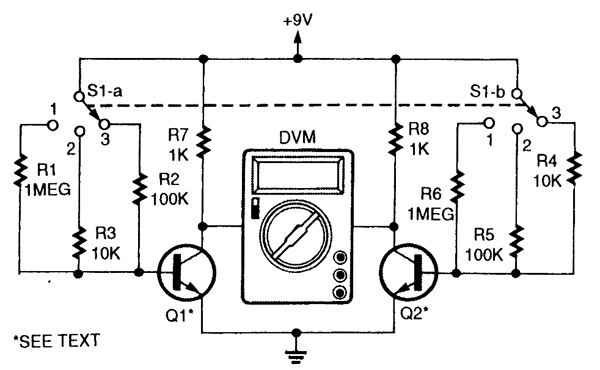

In order to match two transistors, select Q1 and Q2 so that they give zero readings(or as close as possible)on a DVM. The DVM acts as a null detector. An analog meter can be substituted. S1 should be set for an appropriate level of base current(approximately 8,80,or 800 μA).
