Series Inductance Circuit

Published:2011/4/30 19:43:00 Author:Robert | Keyword: Series Inductance | From:SeekIC

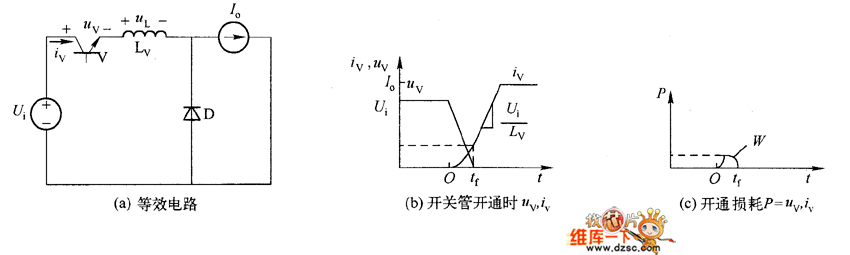

The most simplest open absorbing circuit is thatthe inductance Lv connects to the switchingtubein series, which shows in picture (a). Picture(b) and (c) separately shows the uv, iv and P curve of the opening process. This illustrates thatafter adding series inductance, it limits the switching tube current's uprising speed , and decrease the power dissipation of the switch.
