SYN_COMBINER

Published:2009/6/19 2:38:00 Author:May | From:SeekIC

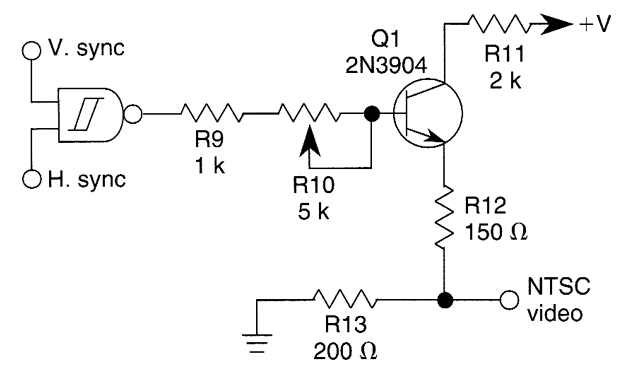

This circuit combines H and V sync signals at TTL or CMOS levels and produces an NTSC video sync output.
