SINGLE_ENDED_REGULATOR

Published:2009/6/28 21:20:00 Author:May | From:SeekIC

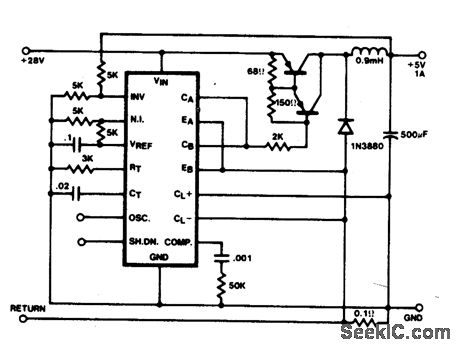

In this conventional single-ended regulator circuit，the two outputs of the SG1524 are connected in parallel for effective 0-90％duty-cycle modulation. The use of an output inductor requlres an RC phase compensation network for loop stability．
