SIMPLE_LOGIC_PROBE_WITH_ALPHANUMERIC_DISPLAY

Published:2009/6/24 3:03:00 Author:May | From:SeekIC

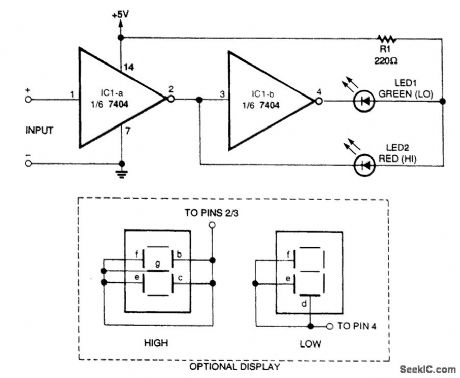

A logic probe also includes BCD decoder module. The red LED lights to indicate a logic high, and the green LED lights to indicate a logic low. This probe circuit will light a green (low) or red (high), and if desired, an alphanumeric display can be obtained with two 7-segment LED displays.
