SIMPLE_LAMP_PULSER

Published:2009/6/19 2:50:00 Author:May | From:SeekIC

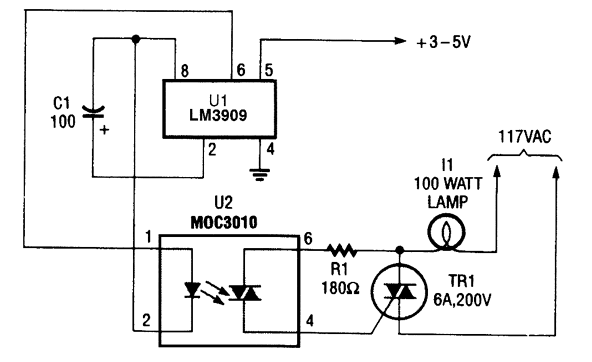

Here, the LM3090 (configured as a timing oscillator) is used to control a 117-Vac lamp through an MOC3010 optois olator/coupler.
