SHARP_SQUARE_WAVEFORMS_FROM_MULTIVIBRATOR

Published:2009/6/24 2:50:00 Author:Jessie | From:SeekIC

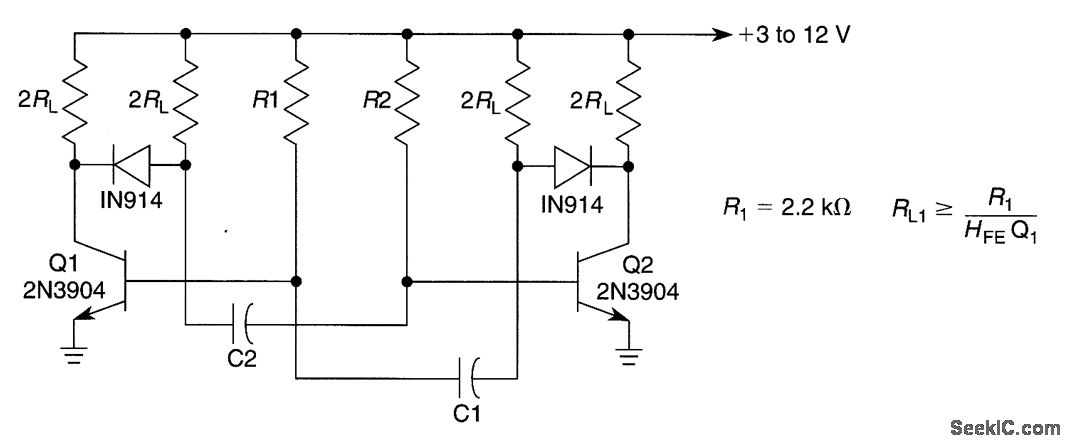

By using diodes as shown, the loading effect on the collector of the transistors caused by the tim-irtg capacitors can be avoided. As the collector of the transistors rises toward VCC the diode discon-nects the tinting capacitors.
