REMOTE_TUNED_ACTIVE_HF_ANTENNA

Published:2009/6/18 23:04:00 Author:May | From:SeekIC

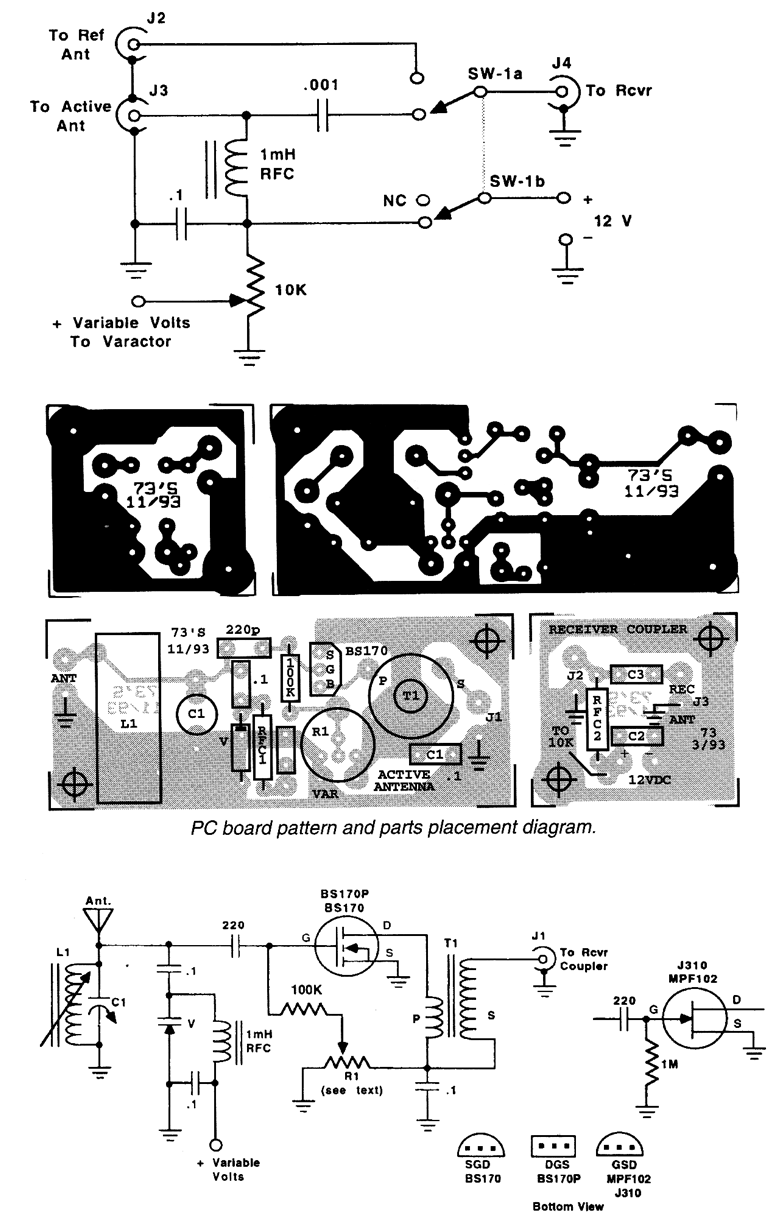

An MV1662/S varactor diode tunes this active antenna/preamplifier.R1 varies gate bias on the BS170 FET. T1 is a 3:1 toroidal winding suitable for the frequencies of interest.
