PULSE_WIDTH_TO_ANALOG_DEMODULATOR

Published:2009/7/14 3:23:00 Author:May | From:SeekIC

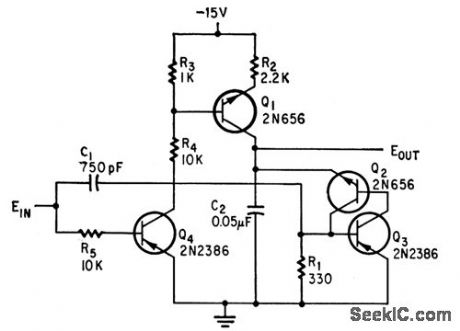

Circuit integrates incoming pulse and holds final value until next pulse arrives, Output then returns to zero for next integration. Output range is 0 to 10 v for input pulse width range of 0 to 1 microsec.-D. Knowlton, Modulated Pulse Width Converted to Analog Voltage, Electronics, 38:20, p 99-100.
