PHONE_LINE_SIMULATOR

Published:2009/6/24 3:44:00 Author:May | From:SeekIC

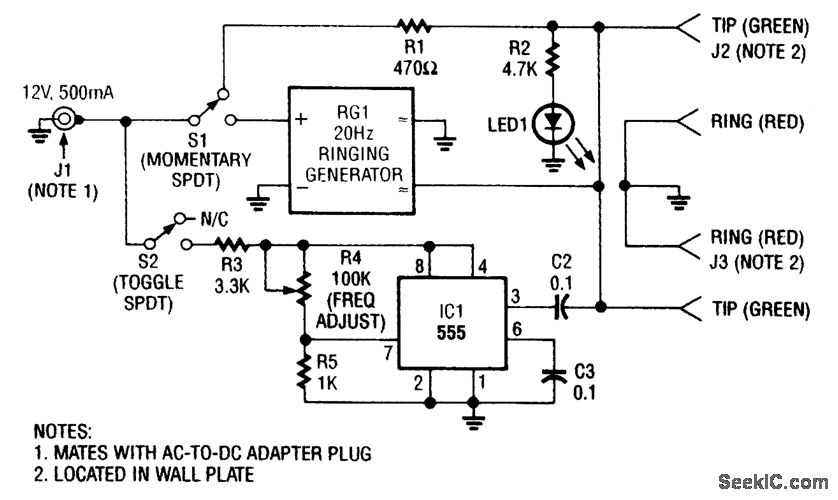

This device contains a ringing generator and a tone oscillator. The tone oscillator is set to either 350 or 440 Hz. The ringing generator is a potted module delivering 86 Vac at 20 Hz. It is available from a source listed in the reference.
