PHASE_SPLITTER_CIRCUIT

Published:2009/6/24 22:33:00 Author:May | From:SeekIC

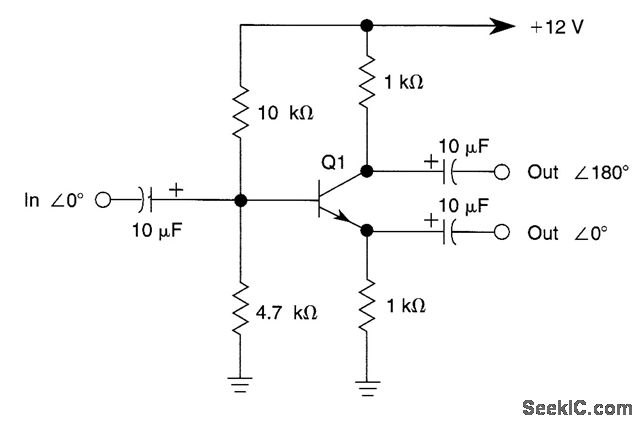

This phase splitter uses a 2N2222 (or other general purpose npn transistor) to achieve outputs that are 180° out ofphase.
