MULTIPLE_INPUT_VIDEO_MULTIPLEX_CABLE_DRIVER

Published:2009/6/19 4:44:00 Author:May | From:SeekIC

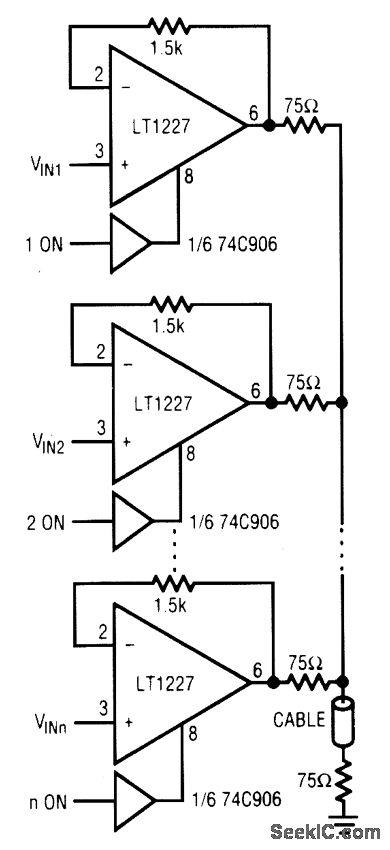

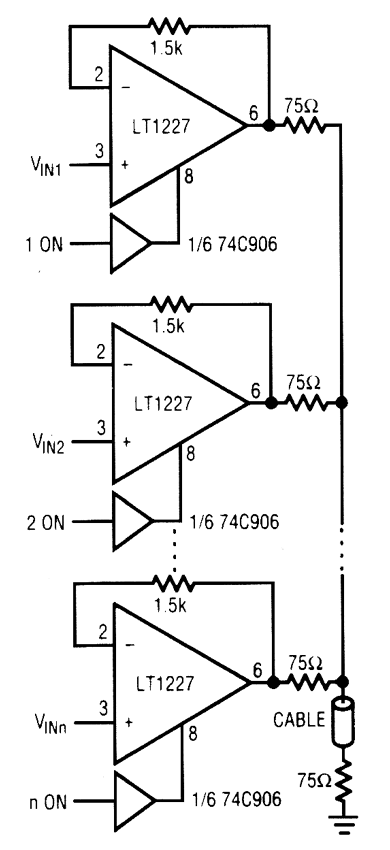

Using a Linear Technology LT1227, the mul-tiplex video amp uses logic levels to tum on and off selected inputs.
