MELODY_CIRCUIT

Published:2009/6/24 1:56:00 Author:May | From:SeekIC

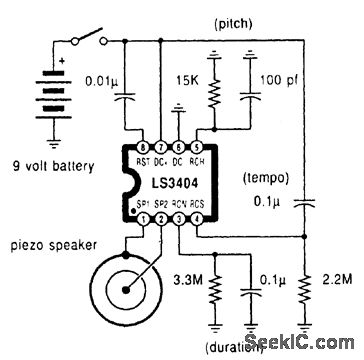

A high-quality melody circuit. The slow decay waveform produced will create chime-like notes. Pitch, tempo, and duration are all adjustable.
