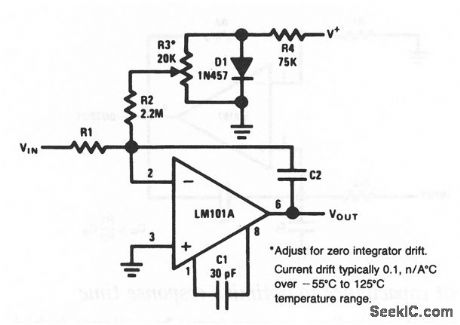

This circuit is similar to that of Fig. 10-10, except that the input bias current can be adjusted for zero drift.
