HIGH_SIDE_MOSFET_DRIVER

Published:2009/6/18 4:51:00 Author:May | From:SeekIC

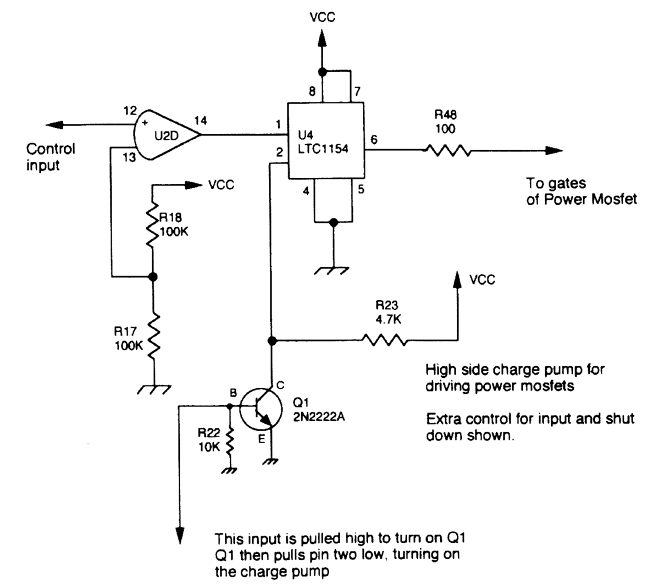

A Linear Technology LTC1154 is used as a charge pump to drive the gate of a high-side power MOSFET.
