GUNSHOT_SOUND_EFFECTS_GENERATOR

Published:2009/6/24 2:46:00 Author:Jessie | From:SeekIC

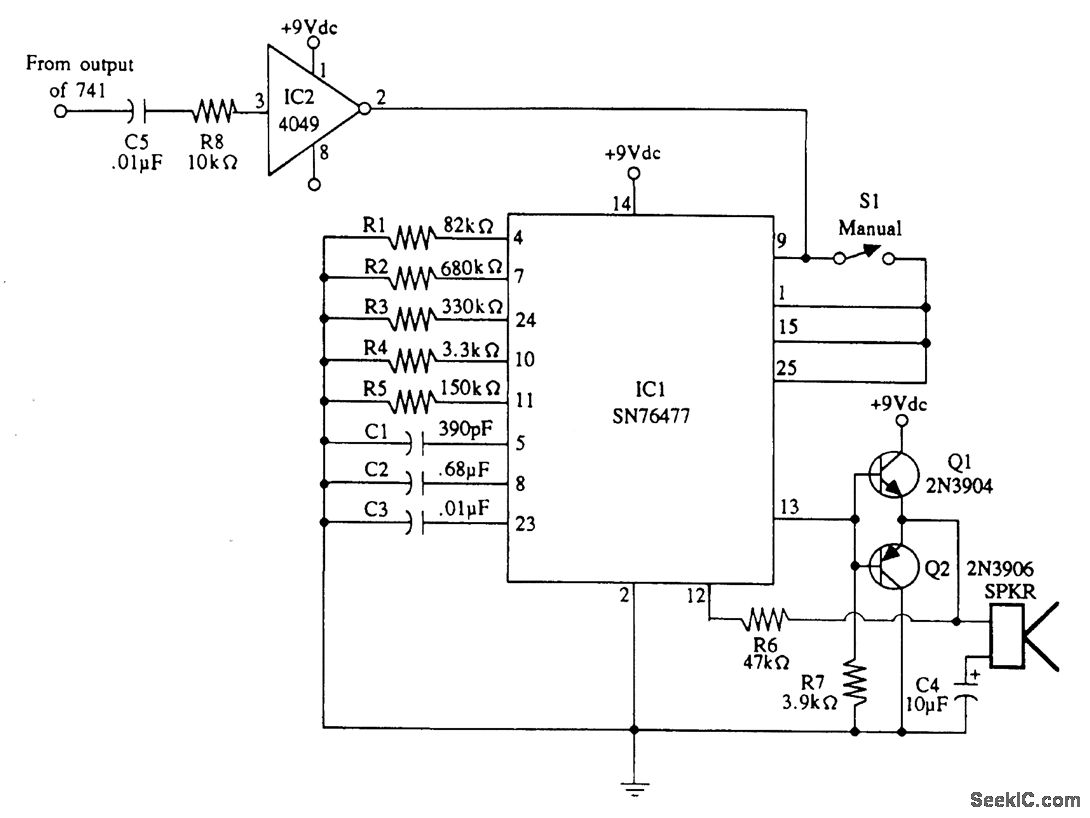

Gunshot sound-effects generator built around a Texas Instruments SN76477 sound chip. An in-put pulse causes IC1 to generate a gunshot sound.
