FIELD_STRENGTH_AT_7_MHz

Published:2009/6/28 22:04:00 Author:May | From:SeekIC

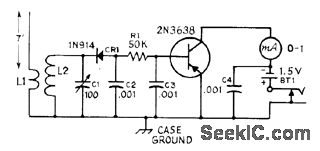

Operates from single dry cell, Meter can be calibrated in decibels with Hewlett-Packard 606A or equivalent signal generator，Jack permits remote metering L1 is 5 turns、and L2 is 30 turns wound onAmidonT68-2 core．-R，W Jones、A7-MHz Vertical Parasitic Array QST，Nov，1973、p 39-43and 52
