DRAWING_CIRCLES_ON_ASCOPE

Published:2009/6/26 2:23:00 Author:May | From:SeekIC

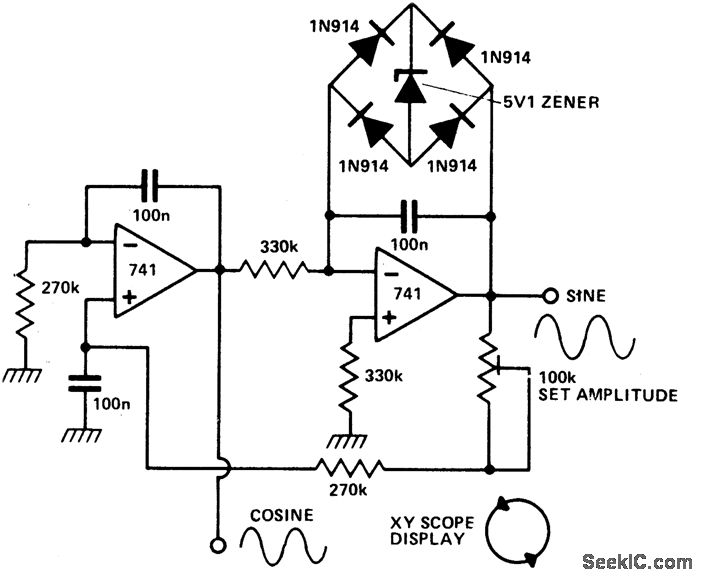

The circuit is that of a quadrature sine and cosine oscillator. To generate circular displays, connect the two outputs to the X and Y inputs.
