CAPACITOR_DISCHARGE_IGNITION_SYSTEM

Published:2009/6/19 2:31:00 Author:May | From:SeekIC

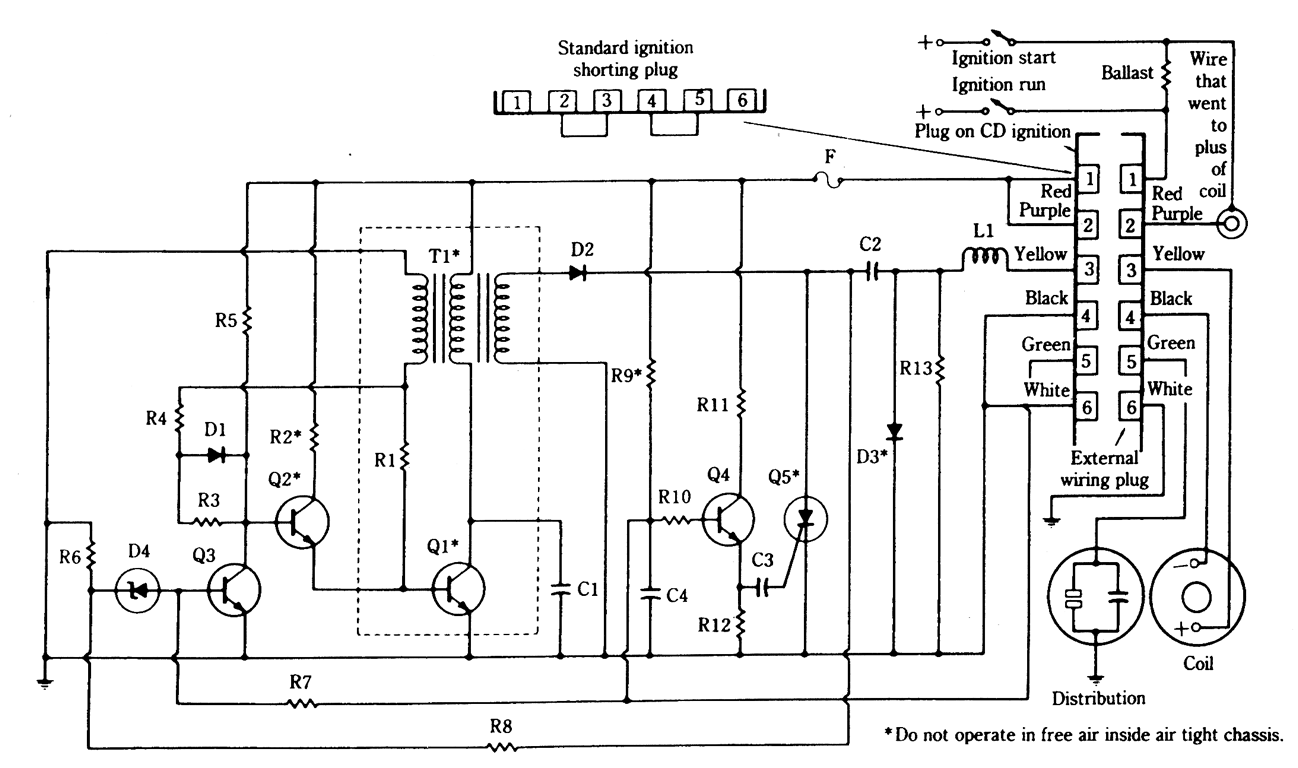

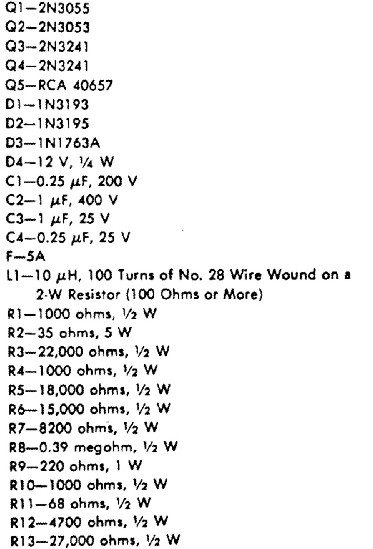

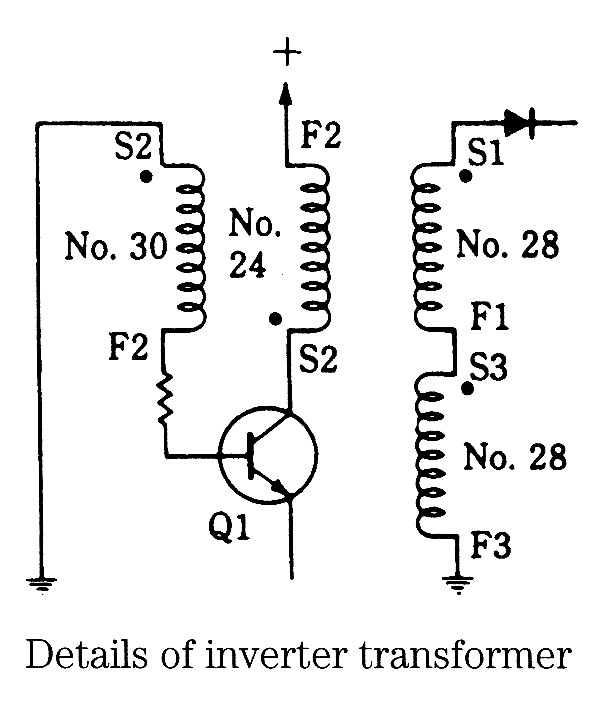

This ignition system charges a capacitor (C2) to 350 V and discharges it through the ignition coil.
