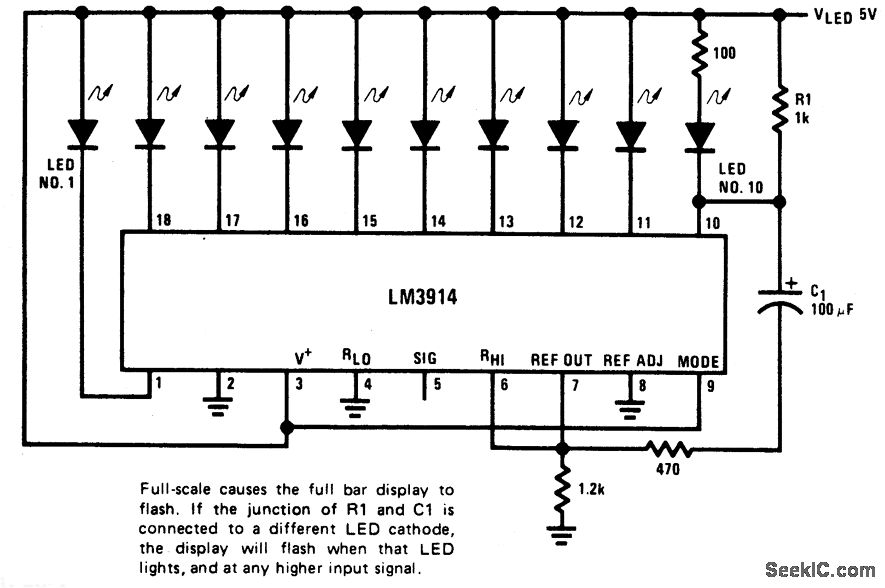

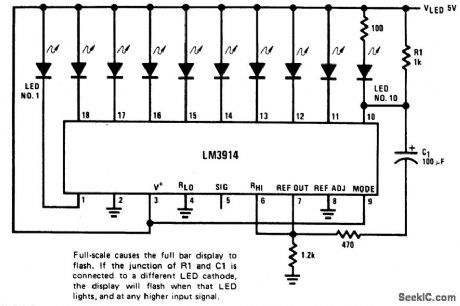

BAR_DISPLAY_WITH_ALARM_FLASHER

Published:2009/6/28 21:21:00 Author:May | From:SeekIC

Print this Page | Comments | Reading(3)

To evaluate my
Code:
