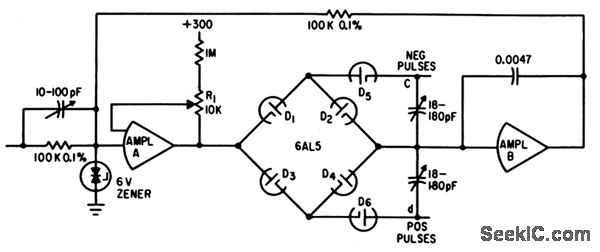

ANALOG_SAMPLE_HOLD_CIRCUIT

Published:2009/7/14 3:25:00 Author:May | From:SeekIC

Uses diode bridge as switching circuit. Operational amplifier A delivers maximum current of 10 ma. Chopper-stabilized operational amplifier B delivers 100 v at 10 ma.-T. A. Brubaker, Precision Analog Memory Has Extended Frequency Response, Electronics, 34:39,p 141-143.
