8_V_FROM_5_V_REGULATOR

Published:2009/6/26 5:05:00 Author:Jessie | From:SeekIC

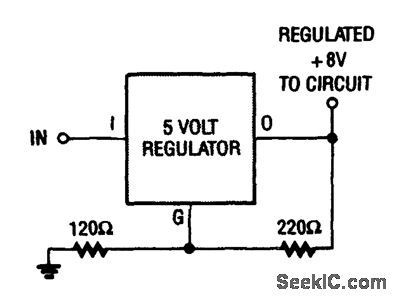

If you have trouble locating an 8-V regulator, although they are commonly available, a 5-V unit can replace it by connecting the regulator, as is shown here.
