33_V_1_A_SURFACE_MOUNT_REGULATOR

Published:2009/6/24 5:02:00 Author:May | From:SeekIC

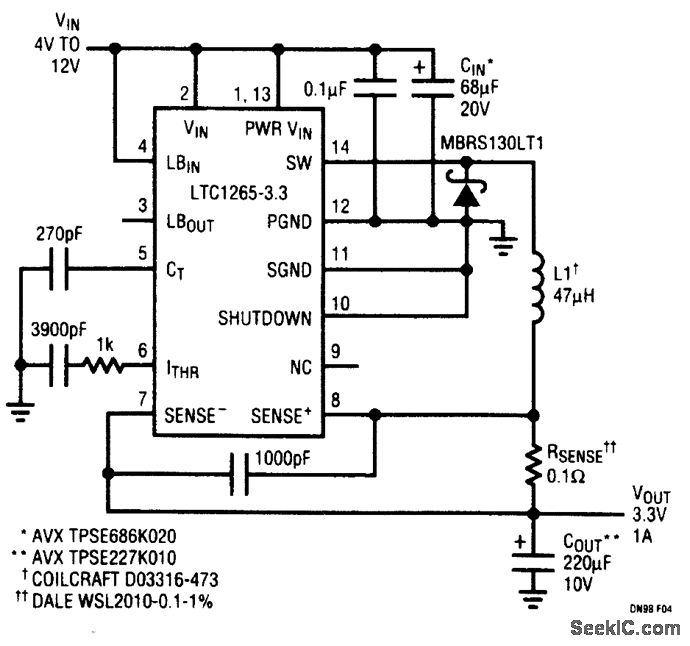

This figure shown a tuopical LTC1265 surface-mount application.It provides 3.3 V at 1 A from an input voltage range of 4 V to 12 V.The peak efficiency approaches 93% at mid-current levels.
