A_F_OUTPUT_TRANSISTOR_PROTECTION

Published:2009/7/14 22:48:00 Author:Jessie | From:SeekIC

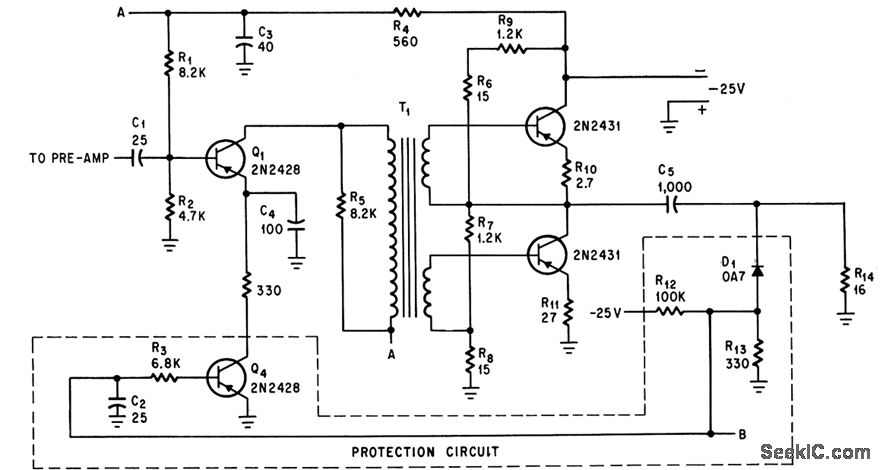

When output of 3-w audio amplifier is short-circuit,protection circuit reduces overall gain by 20 db.-E. Segatis, Circuit Protects Amplifier Against Short Circuit,Electronics,37:23,p 61-62.
