A_D_converter_for_nonratiornetric_transducer_inputs_buffered

Published:2009/7/23 0:43:00 Author:Jessie | From:SeekIC

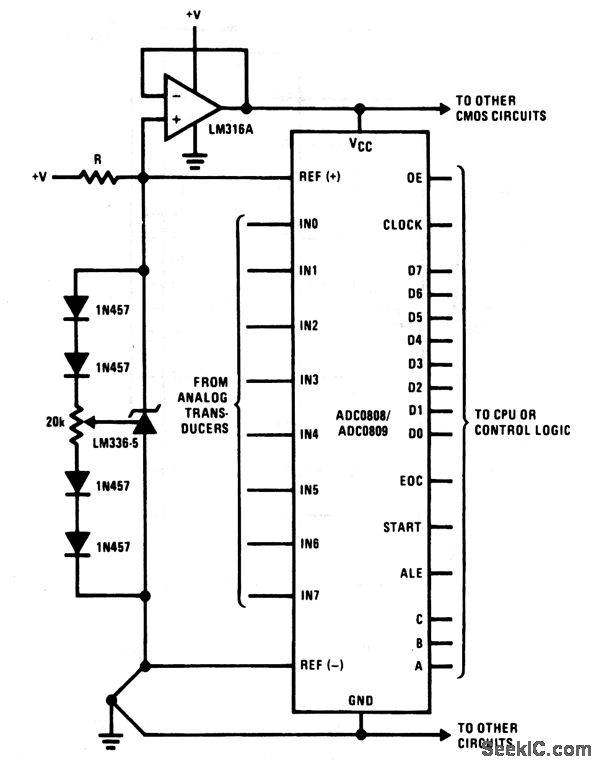

This circuit is similar to that of Fig. 6-17, except that the supply is buffered through an op-amp connected for unity gain. This isolates the ADC reference from the ADC supply (as well as from other system components).
