AY-3-8600 single chip game console integrated circuit

Published:2011/6/23 8:14:00 Author:Christina | From:SeekIC

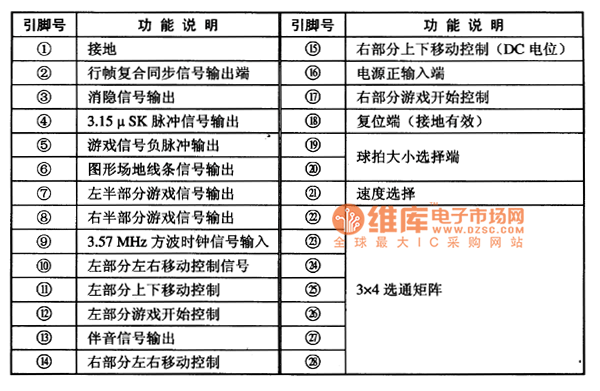

The AY-3-8600 is designed as one kind of single chip game console integrated circuit that can be used to form the toy game circuit. 1.Pin functions The AY-3-8600 uses the 28-pin dual-row package, the pin functions are as shown in table 1. It is composed of the signal mixing circuit, the clock generator circuit and the reset circuit.etc. Table 1 The pin functions of the AY-3-8600 integrated circuit 2.Typical application circuit The game console typical application circuit which is composed of the AY-3-8600 integrated circuit is as shown in figure 1. Figure 1 The typical application circuit of the AY-3-8600
