AX5112 fan single chip microcomputer integrated circuit

Published:2011/6/24 7:12:00 Author:Christina | Keyword: fan, single chip, microcomputer, integrated circuit | From:SeekIC

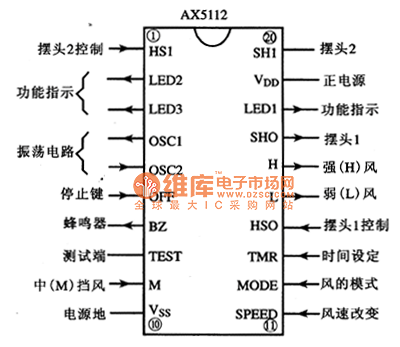

The AX5112 is designed as one kind of fan single chip microcomputer integrated circuit which is produced by the ASL company, and it can be used in various kinds of fan program control circuits. 1.Pin functions The AX5112 uses the 20-pin dual-row DIP package, the pin functions is as shown in figure 1. Figure 1 The pin functions of the AX5112 2.Typical application circuit The remote control fan's typical application circuit which is composed of the AX5112 is as shown in figure 2. Figure 2 The typical application circuit of the AX5112
