AVR Microcontroller Digital Clock with ATtiny 2313

Published:2012/9/11 20:32:00 Author:Ecco | Keyword: AVR Microcontroller, Digital Clock , ATtiny | From:SeekIC

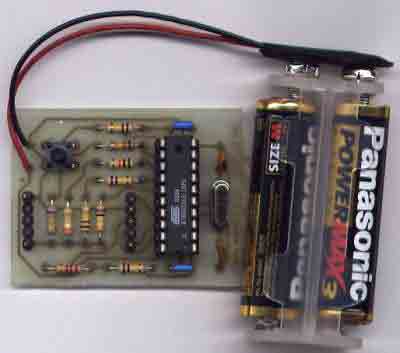

Usually we see Digital clock on LCD or 7 segmen. But, this AVR Digital Clock which is designed by Ficara Emilio displayed on Oscilloscope. The project use ATtiny 2313 as the main controller. What an interesting microcontroller project. Source code and schematic available for download.
