AV3169 digital video coding integrated circuit

Published:2011/6/24 7:20:00 Author:Christina | Keyword: digital, video, coding, integrated circuit | From:SeekIC

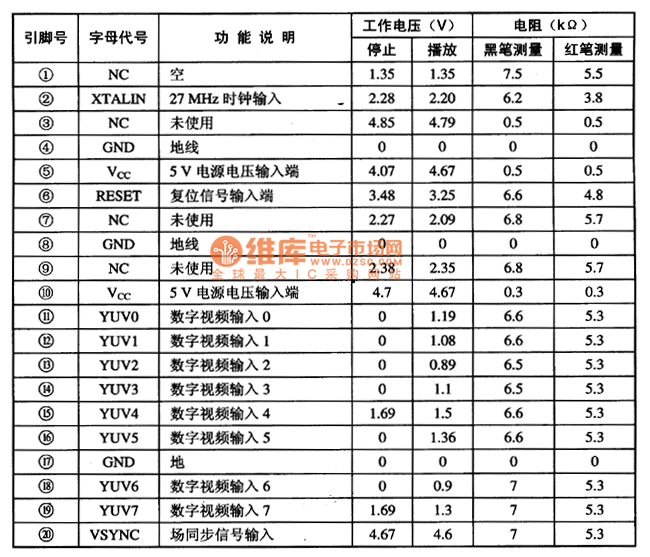

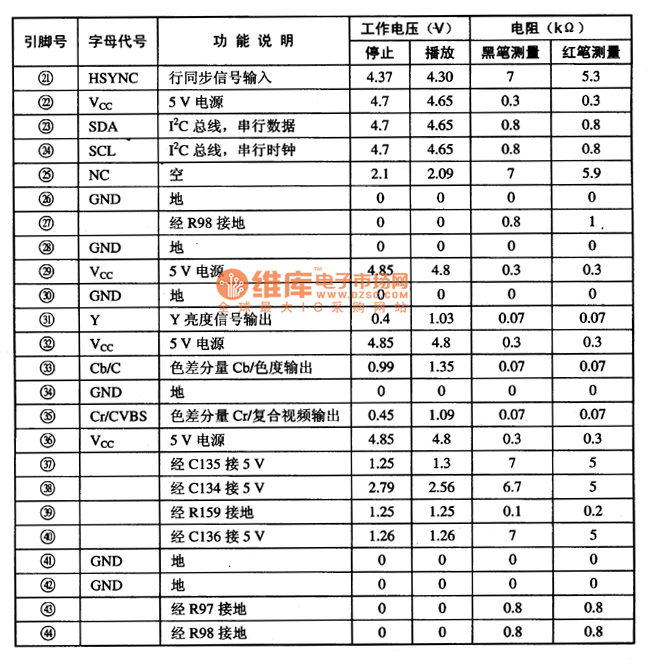

The AV3169 is designed as one kind of digital video coding integrated circuit that is produced by the Panasonic company, and it can be used in various brands of DAD, VCD players. The AV142 integrated circuit is composed of the clock oscillating circuit, the digital video processing circuit, the I(2)C bus interface circuit, the bright color processing circuit.etc. It uses the 44-pin square package, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the AV142
