AUDIO_TO_DC_CONVERTER_CIRCUIT

Published:2009/7/12 22:38:00 Author:May | From:SeekIC

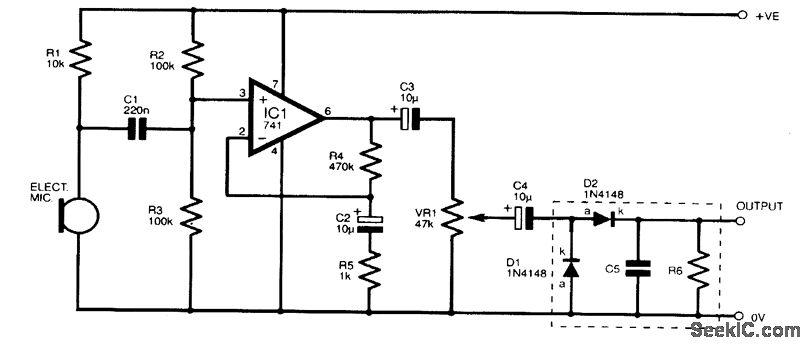

The circuit diagram for the audio input module, which produces a dc output voltage relative to the input signal amplitude.
