AUDIBLE_CMOS_PROBE

Published:2009/7/2 22:51:00 Author:May | From:SeekIC

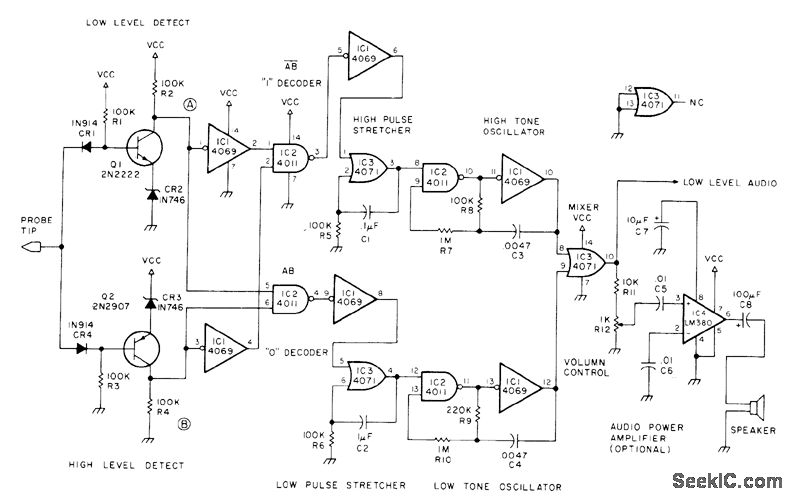

Eliminates need for watching meterwhile applying probe tip in turn to large number of closely spaced terminals during troubleshooting. Produces high tone for logic high, low tone for logic low, and no sound for open or floating string. Supplyis 12V.Articledescribes circuit operation in detaiL-C. W. An-dreasen, The Best Probe Yet?, 73 Magazine, April 1978, p 134-135.
