AT24C04 memory integrated circuit

Published:2011/6/24 7:42:00 Author:Christina | Keyword: memory, integrated circuit | From:SeekIC

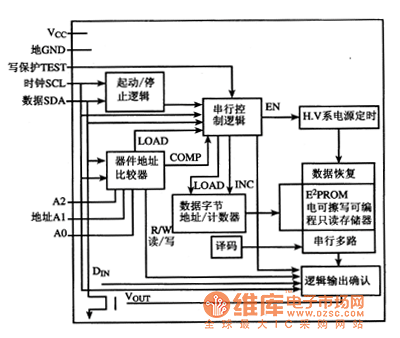

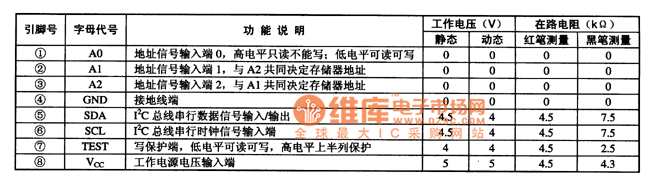

The AT24C04 series memory integrated circuit can be used with the single-chip microcomputer, the stored information is different according to the occasions. 1.Features The AT24C04 is composed of the I(2)C bus circuit, the E(2)PROM electric erasable programmable read-only memory (ROM), the data byte address/counter circuit.etc. The internal circuit block diagram is as shown in figure 1. Figure 1 The internal circuit block diagram of the AT24C04 2.Pin functions and data The AT24C04 uses the 8-pin dual-row DIP package, the pin functions and data are as shown in table 1, this data is measured from the ChangHong CH-10 large screen color TV. Table 1 The pin functions and data of the AT24C04
