ASTABLE_SQUARE_WAVE

Published:2009/7/2 0:26:00 Author:May | From:SeekIC

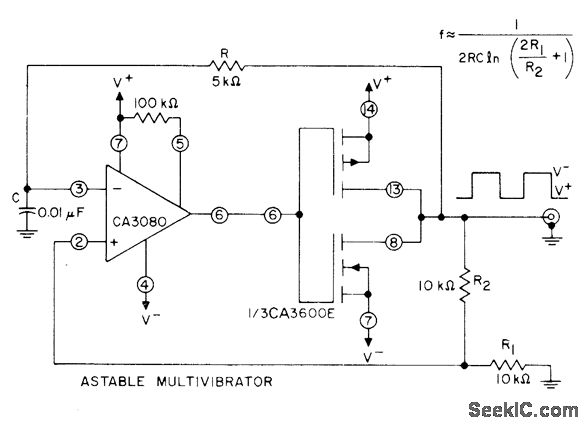

CA3080 variable opamp drives one inverter/amplifier section of CA3600E inverter array. Quiescent power drain is typically 6 mW. Supply voltage range is ±3 to ±15V.- Circuit Ideas for RCA Linear ICs, RCA Solid State Division, Somerville, NJ, 1977, p 5.
