APPROXIMATING_VECTOR_SUMS

Published:2009/7/7 22:48:00 Author:May | From:SeekIC

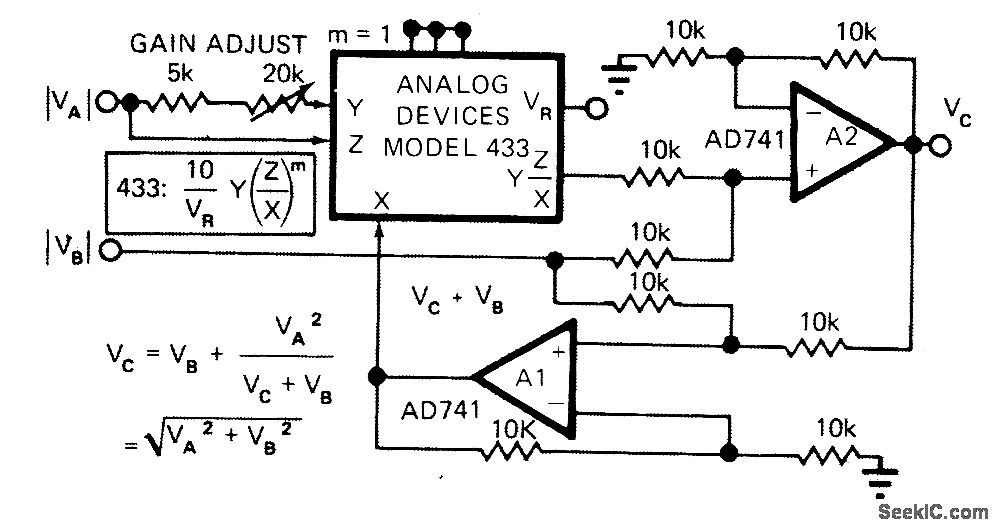

Combination of two opamps and Analog Devices 433 multiplier1divider IC provides output voltage equal to vector sum of two input voltages, by computing square root of sum of squares.-D.H. Sheingold, Approximate Analog Functions with a Low-Cost Multiplier/Divider, EDN Magazine, Feb. 5, 1973, p 50-52.
