ANALOG_VOLTAGE_COMPARATOR

Published:2009/7/20 1:52:00 Author:Jessie | From:SeekIC

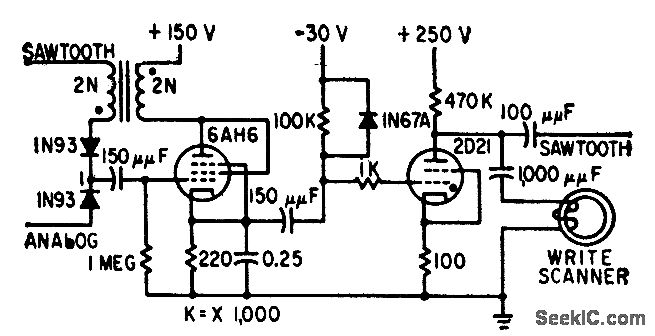

When sawtooth amplitude exceeds analog voltage, positive feedback loop of blocking oscillator is completed through conducting diode and oscillator conducts, triggering thyratron writing circuit for magnetic drum.-H. L. Daniels and D. K. Sampson, Magnetic Drum Provides Analog Time Delay, Electronics, 32:6, p 44-47.
