ANALOG_START_STOP_AND_RESET

Published:2009/7/10 4:26:00 Author:May | From:SeekIC

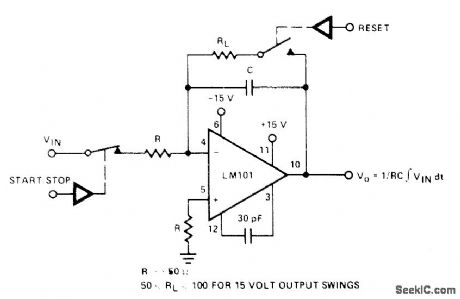

One section of DG300 dual analog switch serves for discharging integrator capacitor C through RL when resetting integrator, with start/stop switch section being held open by control logic.When both switches are open, output of integrator is held.- Analog Switches and Their Applications, Siliconix, Santa Clara, CA, 1976, p7-81.
