ANALOG_GATE

Published:2009/7/16 2:00:00 Author:Jessie | From:SeekIC

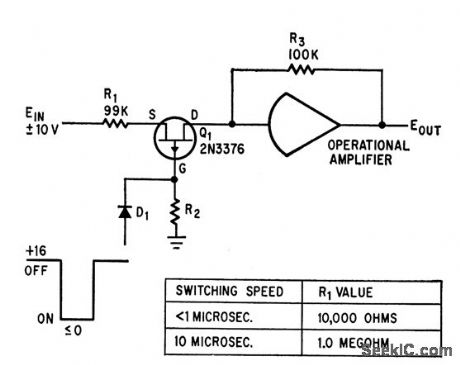

Output is -10.0025 V for +10 V input, and +9.9975 V for -10 V input.-M. Shipley Sr., Analog Switching Circuits Use Field-Effect Devices, Electronics, 37:32, p 45-50.
