ANALOG_FLUXGATE_MAGNETOMETER_ASSEMBLY

Published:2009/7/13 5:45:00 Author:May | From:SeekIC

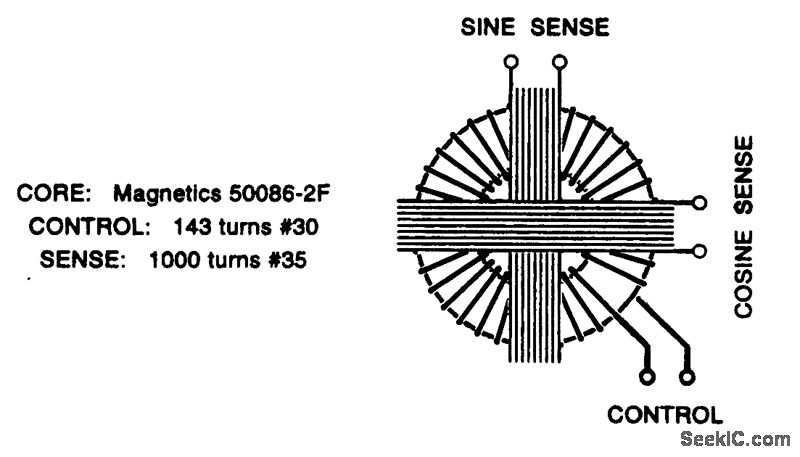

An audio input drives the sine-wave control input, switching (or gating ) the core in and out of saturation and drawing in or releasing an external magnetic field.Weak signals at the sense outputs are proportional to field strength.
