AN6363AS chrominance signal processing integrated circuit

Published:2011/6/29 1:30:00 Author:Christina | Keyword: chrominance signal, processing integrated circuit | From:SeekIC

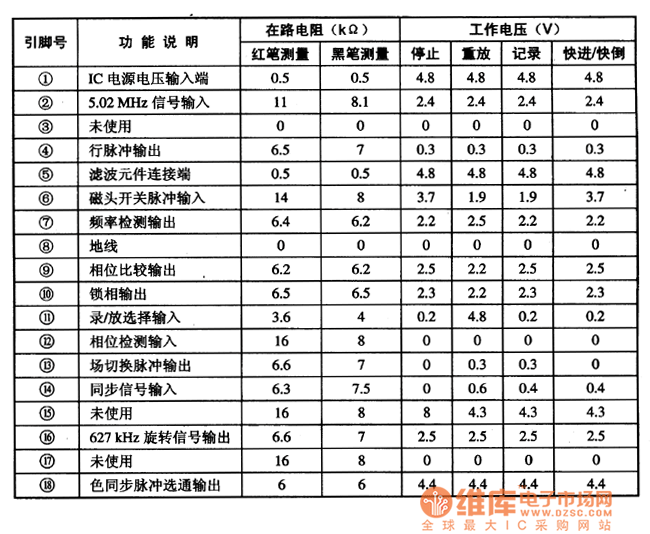

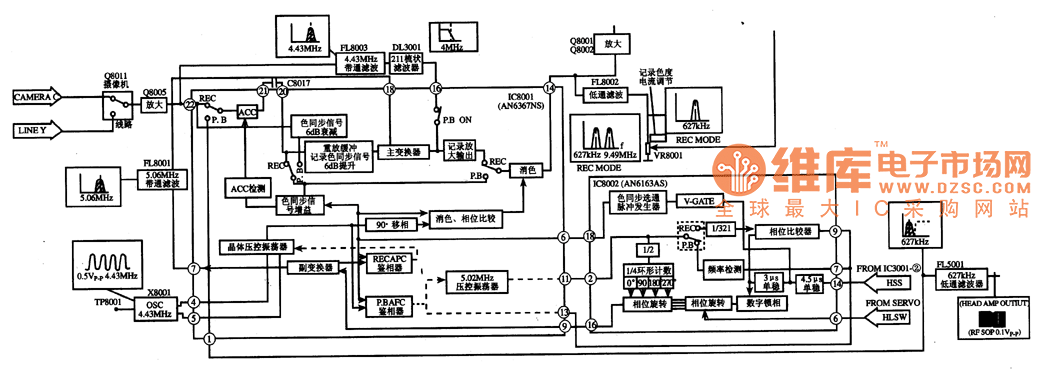

The AN6363AS chrominance signal processing integrated circuit is produced by the Panasonic company that can be used in the Panasonic NVM series cameras. 1.Features The internal main function of the AN6363AS is to produce the interval phase line-by-line phase shifting 90°627KHz signal by the rotator, and the automatic frequency control of the time base correction circuit. The internal circuit block diagram of the AN6363AS is as shown in figure 1. Figure 1 The internal circuit block diagram of the AN6363AS 2.Pin functions and data The AN6363AS is in the 18-pin dual-row plastic structure, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the AN6363AS 3.The typical application circuit The typical application circuit of the AN6363AS is as shown in figure 1.
