AN5836 audio preamplifier and control integrated circuit

Published:2011/9/8 19:58:00 Author:Christina | Keyword: audio preamplifier, control, integrated circuit | From:SeekIC

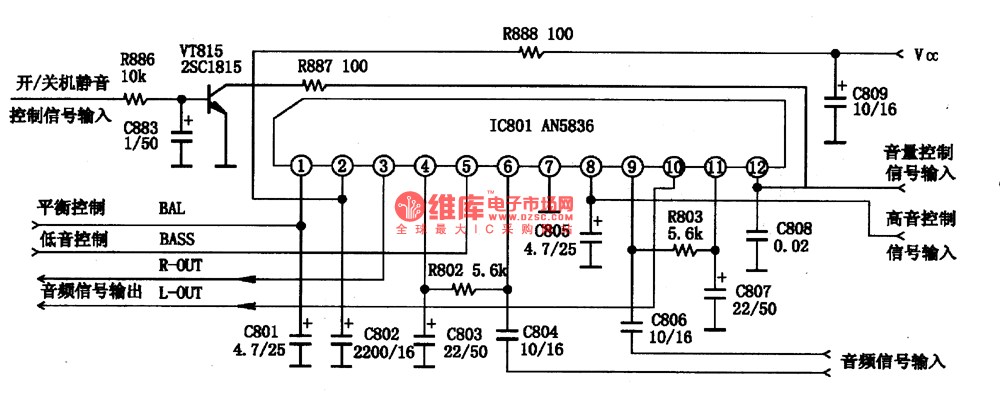

The AN5836 is designed as the audio preamplifier and control integrated circuit that is produced by the Panasonic company, and it can be used in the TV sound system and home theater system. 1.The typical application circuit of the AN5836 The typical application circuit of the AN5836 is as shown in figure 1. 2.The pin functions and data of the AN5836 The AN5836 uses the single row 12-pin package, the pin functions and data are as shown in table 2. 3. The working process of the circuit The L-IN and R-IN signals are input from the pin-9 and pin-6 of the AN5836 circuit, and the signals are adjusted by the AN5836, then they are output by pin-3 and pin-4.
