AN5534 field scanning output integrated circuit

Published:2011/8/24 20:57:00 Author:Christina | Keyword: field scanning, output, integrated circuit | From:SeekIC

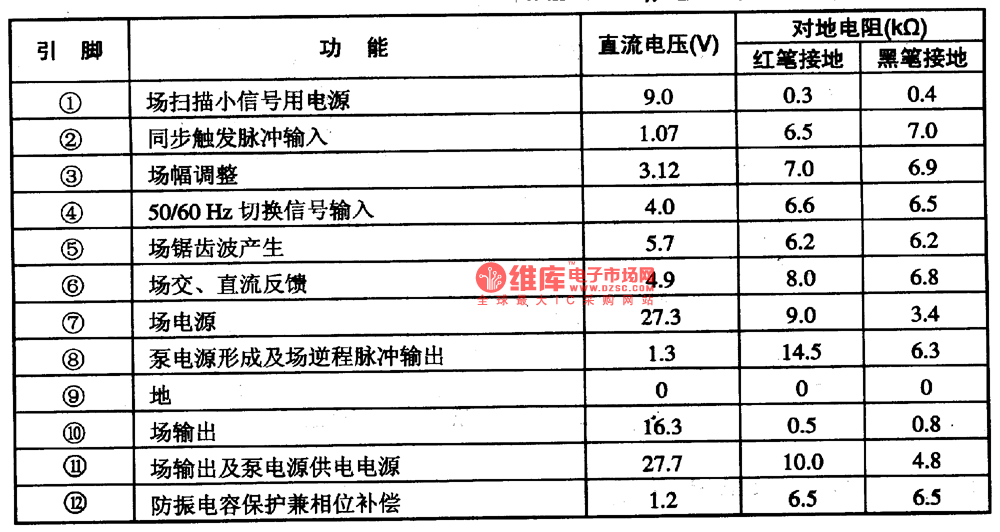

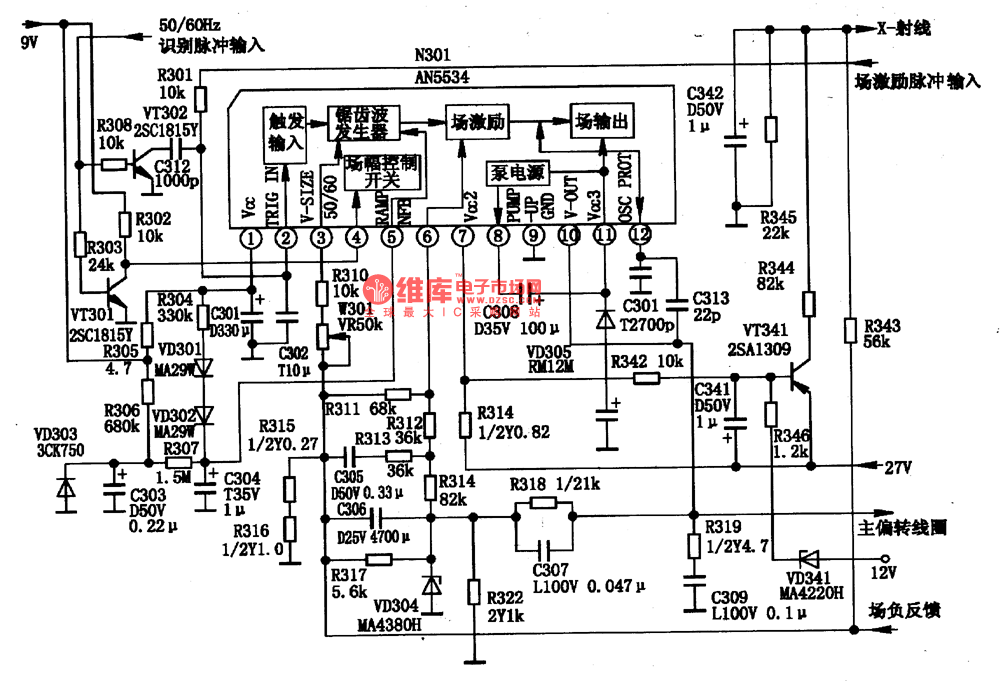

The AN5534 is designed as the field scanning output integrated circuit that is produced by the Panasonic company, and this device can be used in all kinds of domestic and imported color TVs. 1.Features The AN5534 is composed of the field oscillation sawtooth wave signal generating circuit, the field incentive and output circuit. The internal circuit block diagram and the typical application circuit are as shown in figure 1-18. 2.Pin functions and data The AN5534 uses the 12-pin single row DIP package, and it can be used in the ChangHong IR2116N series color TV, the pin functions and data are as shown in table 1-18.
