AN5521 field scanning output circuit

Published:2011/8/24 21:11:00 Author:Christina | Keyword: field scanning, output circuit | From:SeekIC

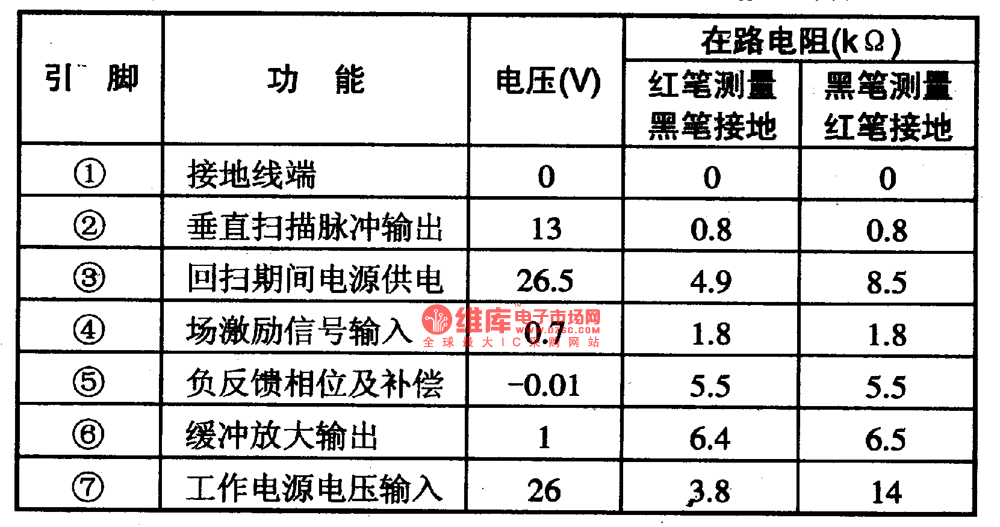

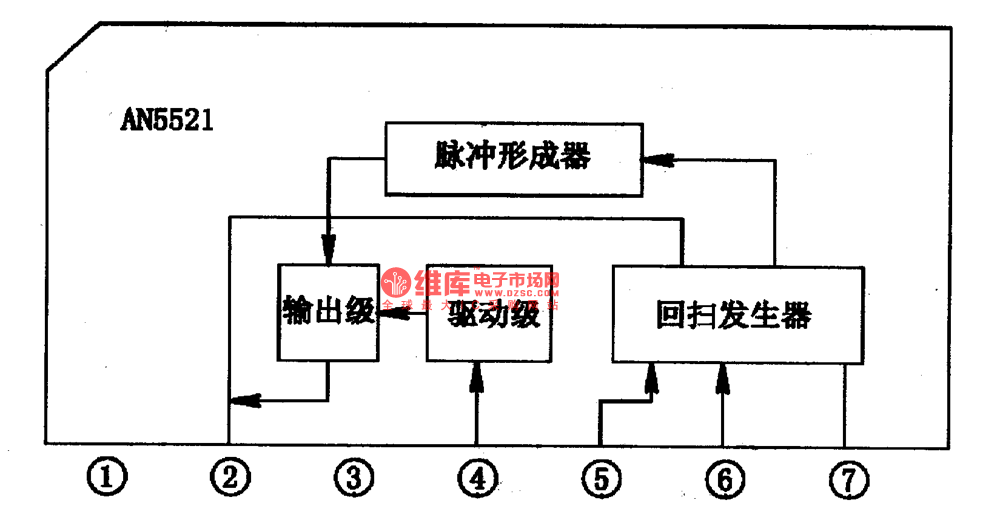

1.Features The AN5521 is composed of the field scanning pulse forming device, the flyback generator, the driving circuit and the field scanning output circuit, the internal circuit block diagram is as shown in the figure 1-17. 2.Pin functions and data The AN5521 uses the 7-pin single row DIP package, the pin functions and data are as shown in table 1-17.
