AN5151 monolithic TV signal processing integrated circuit

Published:2011/8/24 22:03:00 Author:Christina | Keyword: monolithic, TV signal, processing, integrated circuit | From:SeekIC

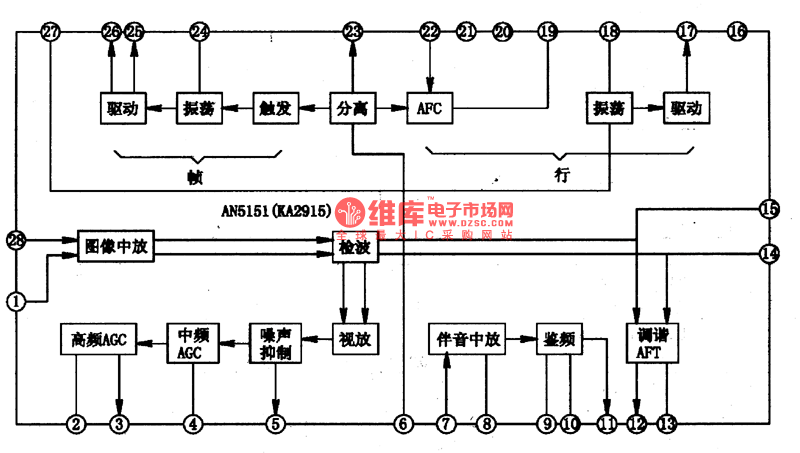

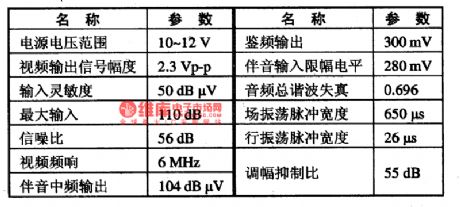

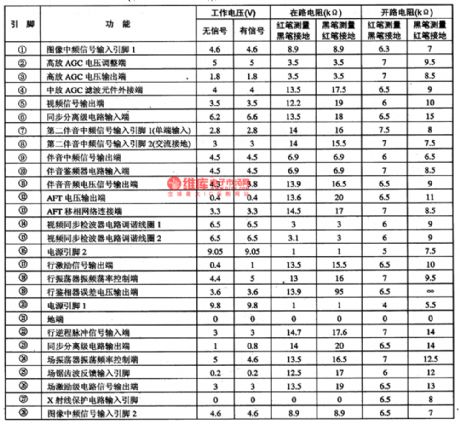

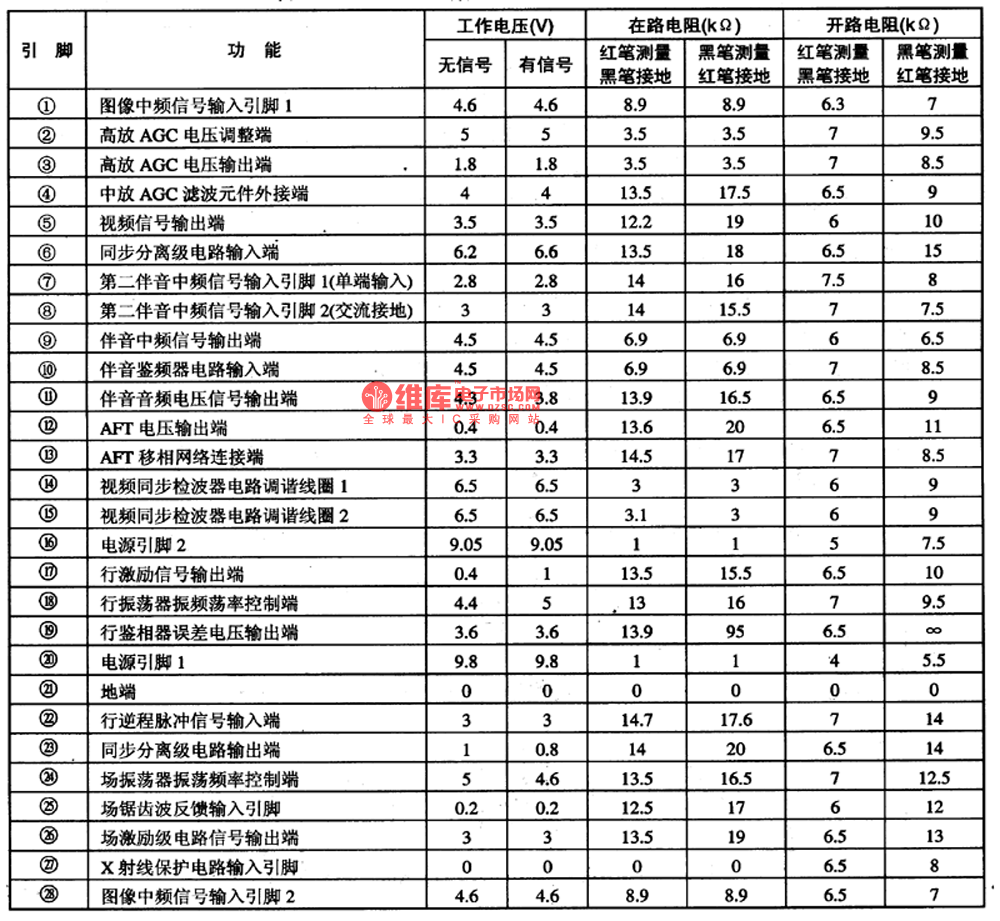

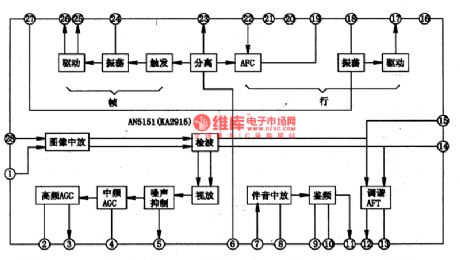

The AN5151 is designed as the monolithic TV signal processing integrated circuit that is produced by the Panasonic company, and it can be used in the 3.5 ~ 5.5 inches small screen TVs. 1.The internal circuit block diagram The AN5151 has the functions of image and accompanying sound medium amplification, the AGC medium amplification, the AGC high amplification, AFC, AFT, line and field scanning oscillation. The internal circuit block diagram is as shown in figure 1-16. 2.The typical technical data The typical technology parameters of the AV5151 are as shown in table 1-15. 3.The functions and data of pin-5 The AV5151 uses the dual-row 28-pin DIP package, the pin functions and data are as shown in table 1-16. Tip: The similar products of AN5151 are KA2951, AV5150. The KA2915 can replace the AN5151 directly, the most of functions and pin functions of AV5150 are the same as the AV5151.
