AN5071 frequency band switching control integrated circuit

Published:2011/8/11 19:53:00 Author:TaoXi | Keyword: frequency band, switching, control, integrated circuit | From:SeekIC

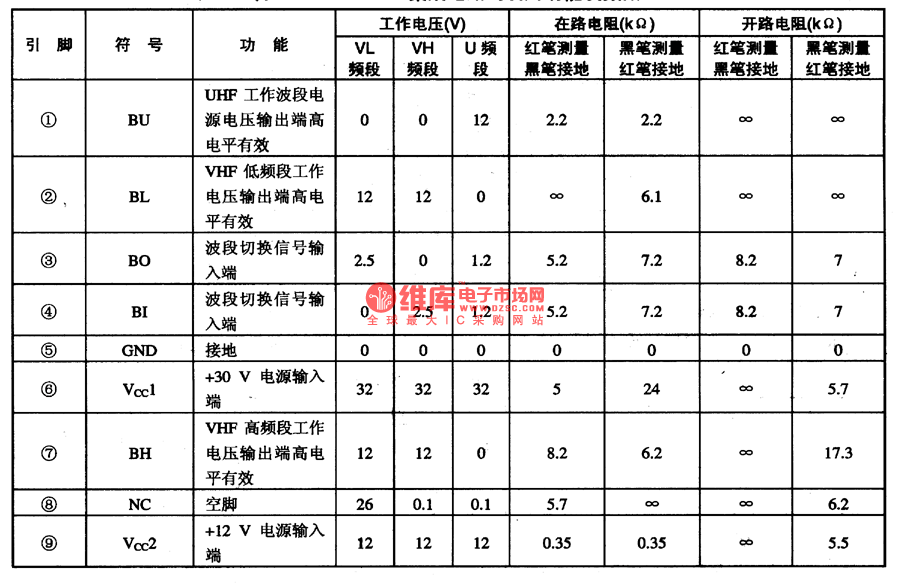

The AN5071 is designed as the frequency band switching control integrated circuit which is produced by the Panasonic company, and it can be used in all kinds of screen color TV sets. 1. The internal circuit block diagram The AN5071 has three channels of electronic switch and the 30V voltage-stabilizing circuit, the internal circuit block diagram of the manifold is as shown in figure 1-15. 2.Pin functions and data The AN5071 uses the 9-pin single row package, the pin functions and data of the integrated circuit is as shown in table 1-14. Table 1-14 The pin functions and data of the AN5071
