AN33215 brightness signal processing integrated circuit

Published:2011/6/30 6:59:00 Author:Christina | Keyword: brightness signal, processing, integrated circuit | From:SeekIC

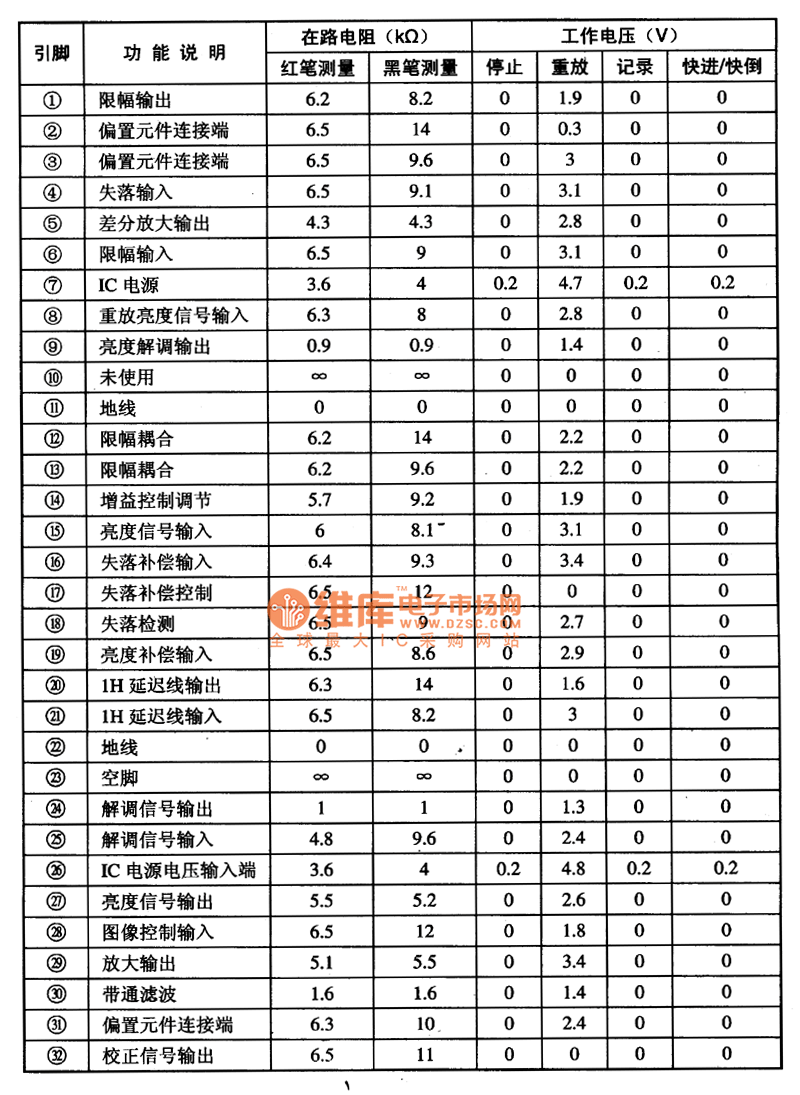

The AN33215 brightness signal processing integrated circuit is produced by the Panasonic company that can be used in the Panasonic AN-M series cameras. 1.Features The AN33215 has the brightness signal demodulation and loss compensation processing circuit to process the replay video signal of the camera, and it bandpass filters, amplifies, limits and demodulates the replay brightness signal. The internal circuit block diagram of the AN3215S is as shown in figure 1. Figure 1 The internal circuit block diagram and the typical application circuit of the AN3215S 2.Pin functions and data The AN3321S uses the 32-pin dual-row DIP apckage, the pin functions and data are as shown in table 1. 3.Typical application circuit The typical application circuit of the AN3321S is as shown in figure 1. Table 1 The pin functions and data of the AN3321S
