AN3311S camera video magnetic read head replay integrated circuit

Published:2011/8/11 20:17:00 Author:TaoXi | Keyword: camera video, magnetic read head, replay integrated circuit | From:SeekIC

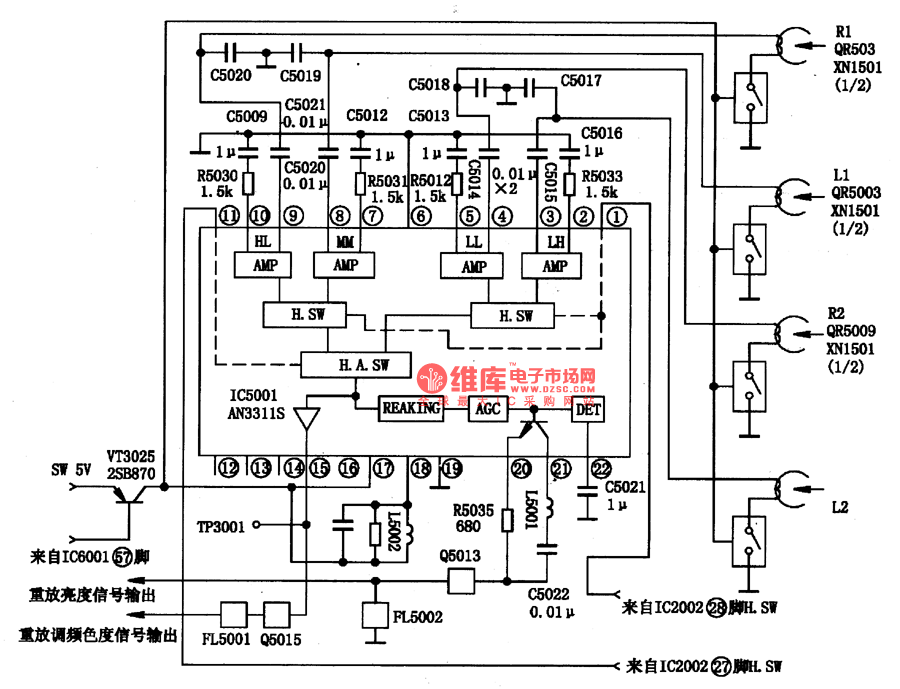

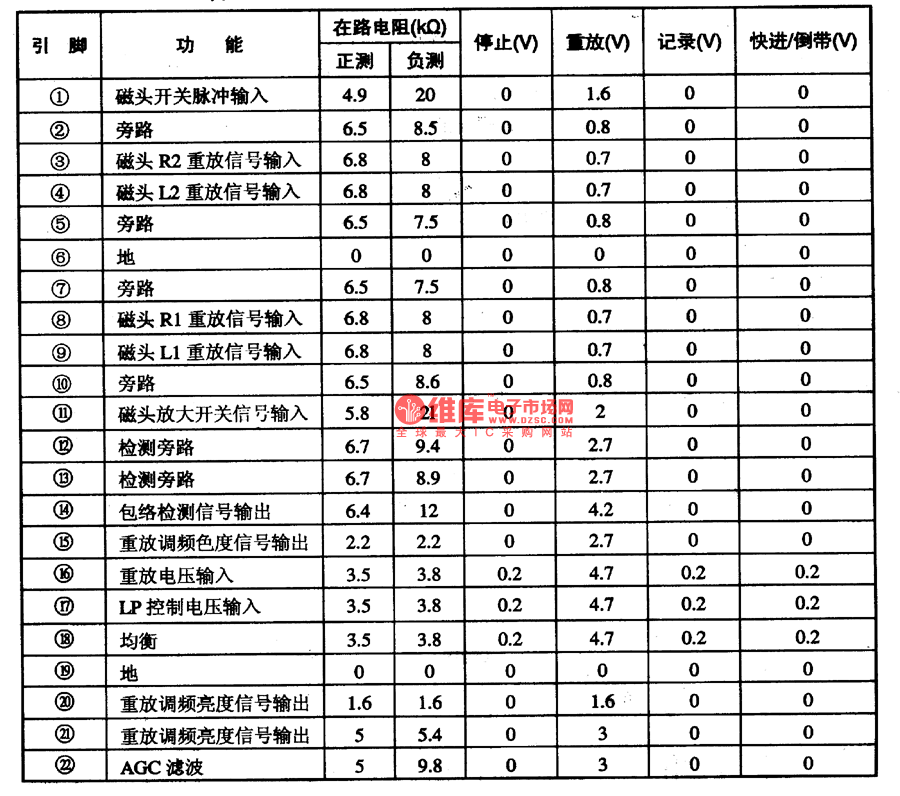

The AN3311S is designed as the camera video magnetic read head replay integrated circuit which is produced by the Panasonic company that can be used in the Panasonic series camera. The AN3311S integrated circuit has the 4 magnetic read head preamplifier, the magnetic read head switching switch, the envelope comparator, the peak value amplification circuit, the color changing amplification circuit, the AGC amplification circuit. The internal circuit block diagram and the typical application circuit is as shown in figure 1-14, the pin functions and data is as shown in table 1-13. Table 1-13 The pin functions and data
