ALTERNATING_RED_GREEN

Published:2009/7/5 23:11:00 Author:May | From:SeekIC

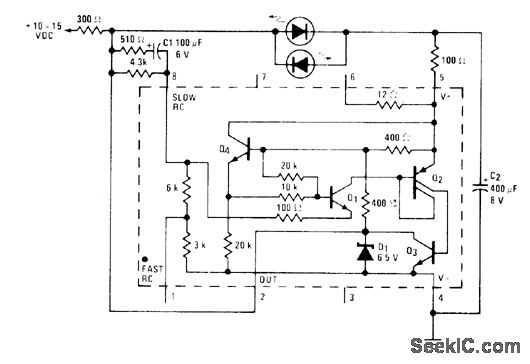

National LM3909 IC is connected as relaxation oscillator for flashing red and green LEDs alternately. With 12-VDC supply, repetition rate is about 2.5 Hz.Green LED should have its anode or positive lead toward pin 5 as shown for lower LED, where shorter but higher-voltage pulse is available. LED types are not criticaL- Linear Applications, Vol. 2, National Semiconductor, Santa Clara, CA, 1976, AN-154, p 3.
