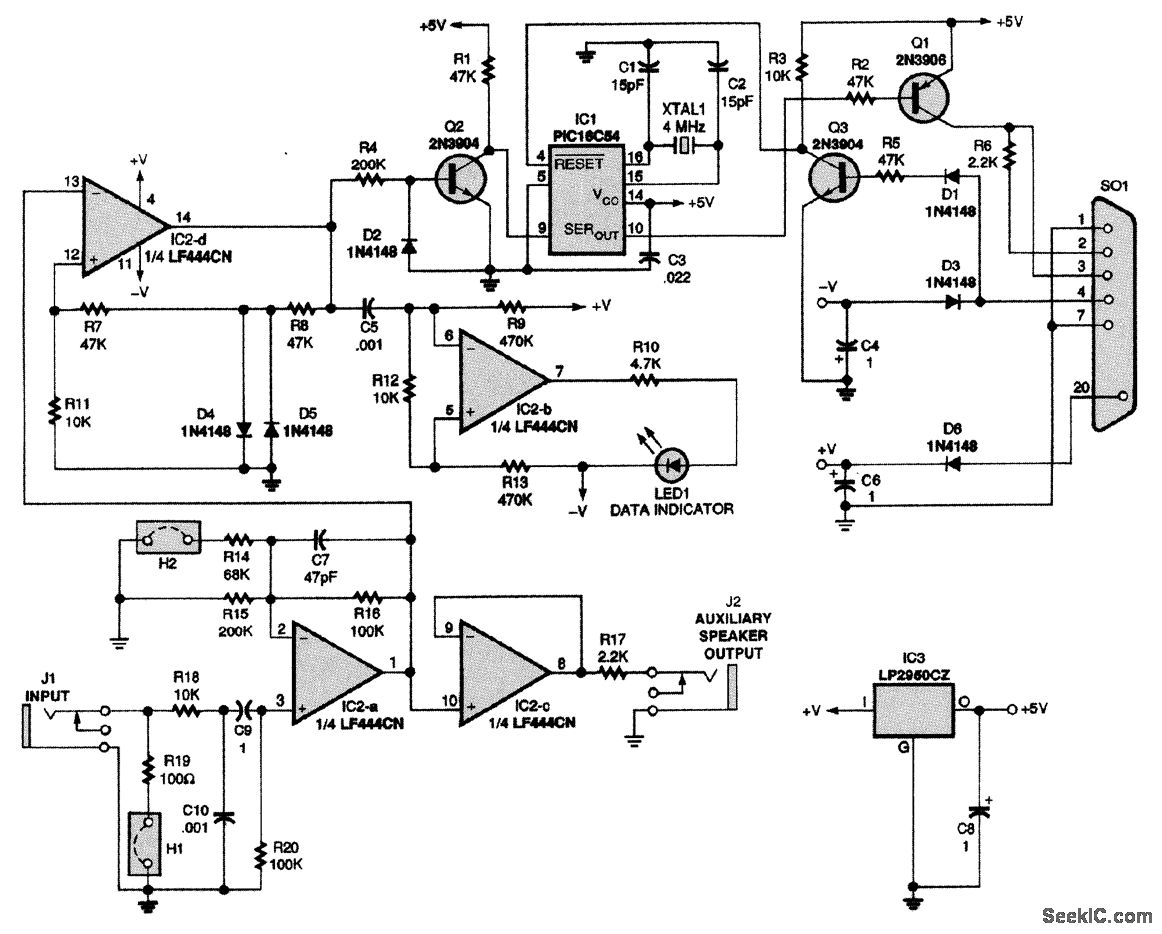

This pager decoder interfaces a scanner plugged into J1 with a personal computer's serial port via the DB25 connector. Software is necessary and can be obtained from the Internet at http://cylexinc.com/download.htm.
