ACTIVE_LOW_TRIAC_INTERFACE

Published:2009/7/14 0:58:00 Author:May | From:SeekIC

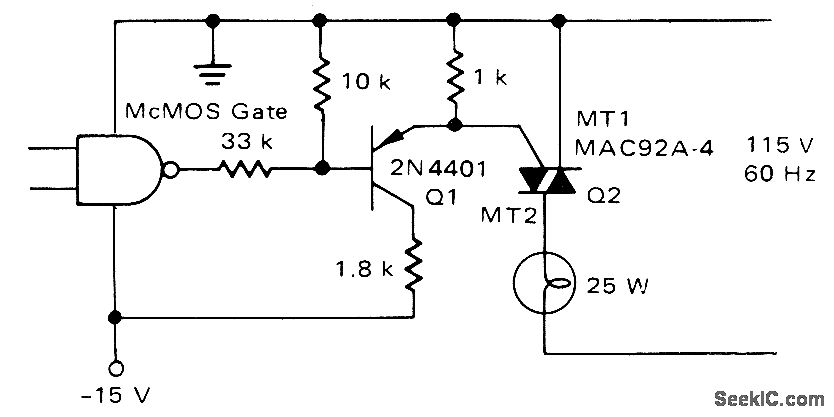

With connection shown for interface transistor Q1,typical CMOS gate triggers triac when gate output goes low, for switching of 25-W lamp load,-A. Pshaenich, Interface Techniquos Between Industrial Logic and Power Devices,″Motorola, Phoenix,AZ,1975,AN-712A,p12.
