A45L9332F dynamic memory integrated circuit

Published:2011/7/3 21:32:00 Author:Christina | Keyword: dynamic memory, integrated circuit | From:SeekIC

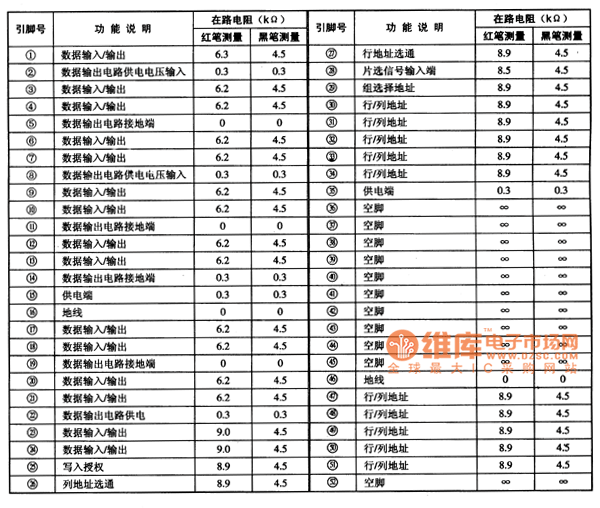

The A45L9332F is designed as one kind of 16777216-bit synchronous high data rate dynamic memory integrated circuit that can be used in the ChangHong HP series rear projection color TVs. 1.Features The A45L9332FF uses the CMOS technology, and it is accurately controlled by the system clock to finish the storage work of data. The internal storage space is divided into two groups, every group is 256Kx32bit. This ciruit has the system clock circuit, the data input/output interface circuit, the line & row address selective passing circuit, the line & row address unit, the data circuit power supply system and other subsidiary function circuits. 2.Pin functions and data The A45L933FF uses the 100-pin square flat package structure, the pin functions and data is as shown in table 1. Table 1 The pin functions and data of the A45L9332F
